Bokexinda X9 Fusion Splicer Detail Page

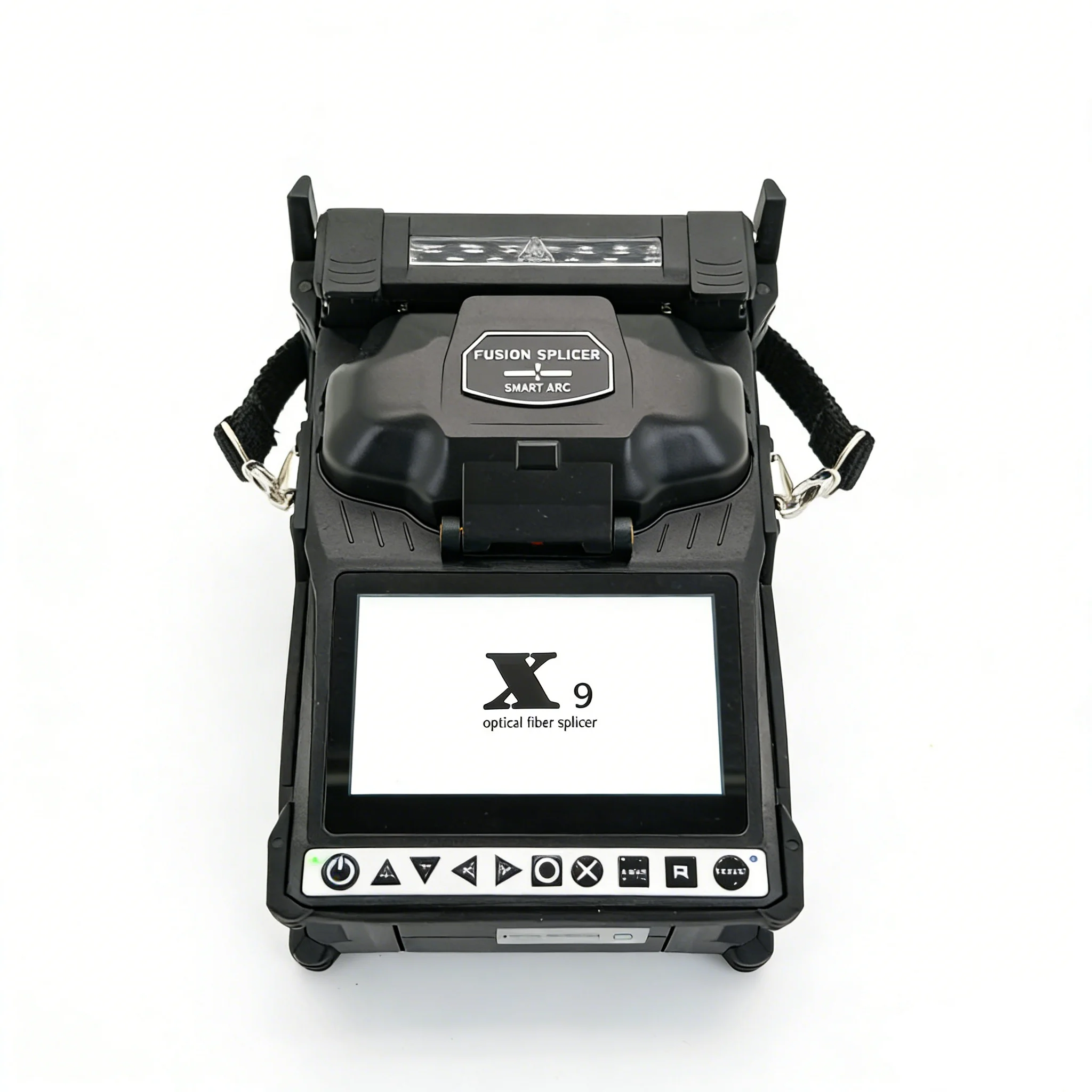

Bokexinda X9 Fusion Splicer

Next-Generation Core Alignment Technology | Precision & Speed Redefined

Core Advantages

Extreme Speed

Industry-leading 8-second splicing and 16-second rapid heating. Zero waiting time for field technicians.

High Accuracy

Accurate metering with SM loss of 0.02dB and MM loss of 0.01dB. Digital imaging and vision processing for perfect alignment.

Smart Interface

4.3-inch high-resolution touch screen. Intuitive UI designed for ease of use in diverse environments.

Professional Design

Lightweight (1.4kg) and compact dimensions (130x105x195mm). Built for portability without sacrificing durability.

Technical Specifications

Model	X9 Next-Generation Fusion Splicer
Splicing Time	8 Seconds (SM G.652 Standard Mode)
Heating Time	16 Seconds (Quick Mode)
Splice Loss	SM: 0.02dB \| MM: 0.01dB \| DS/NZDS: 0.04dB
Fiber Alignment	Digital Imaging / Vision Processing Core Alignment
Magnification	X & Y views separately: 280x \| Simultaneously: 140x
Battery Capacity	5000mAh Lithium Battery (250+ Splice & Heat cycles)
Dimensions / Weight	130(W) x 105(H) x 195(D) mm \| 1.4kg (Excluding Battery)

8-Step Easy Operation Guide

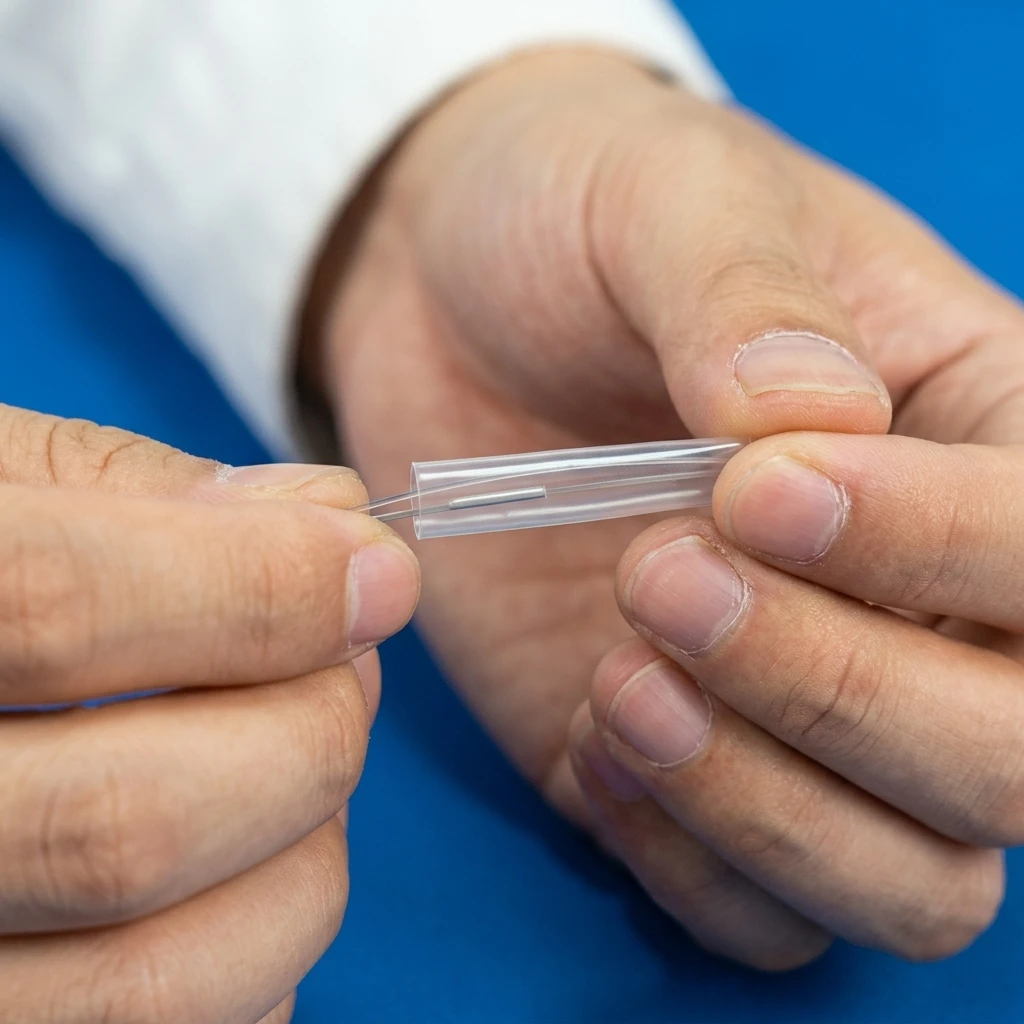

Step 1

1 Prepare shrink sleeve

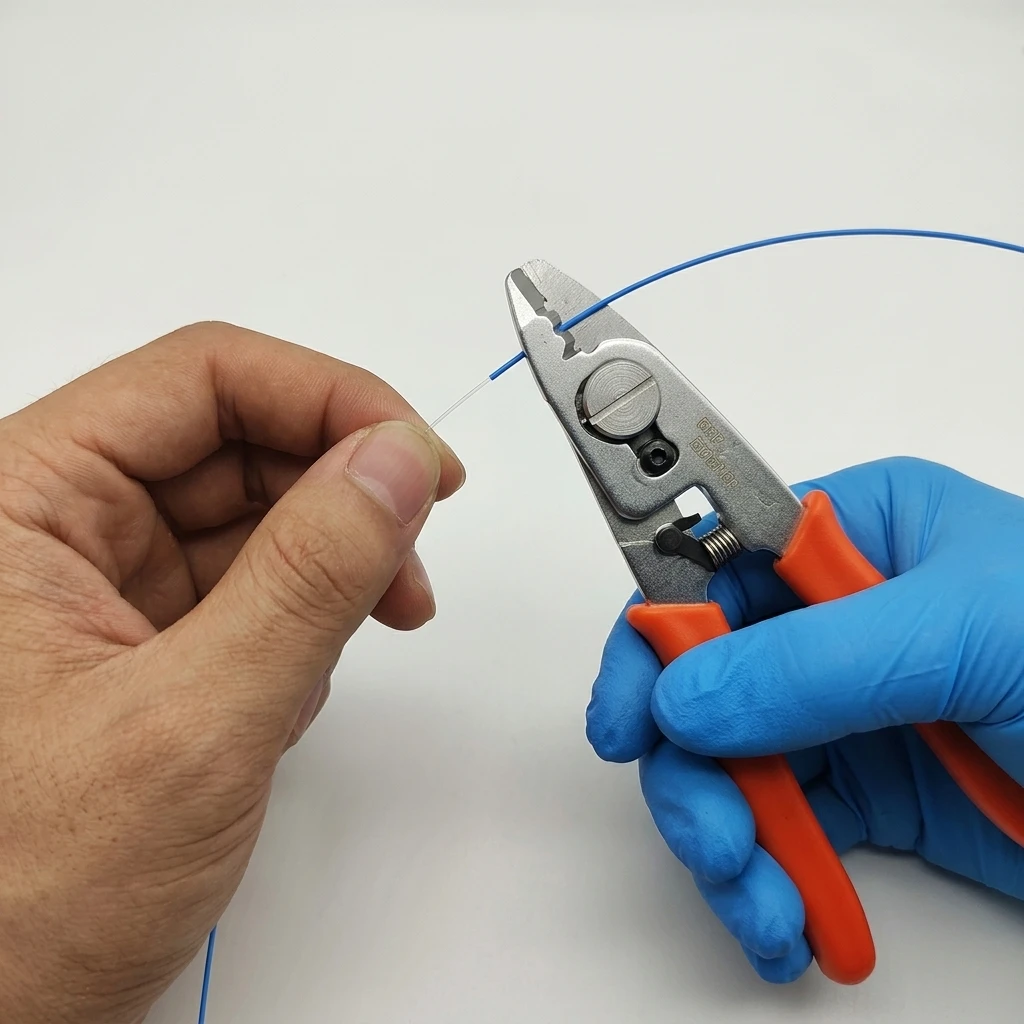

Step 2

2 Strip fiber coating

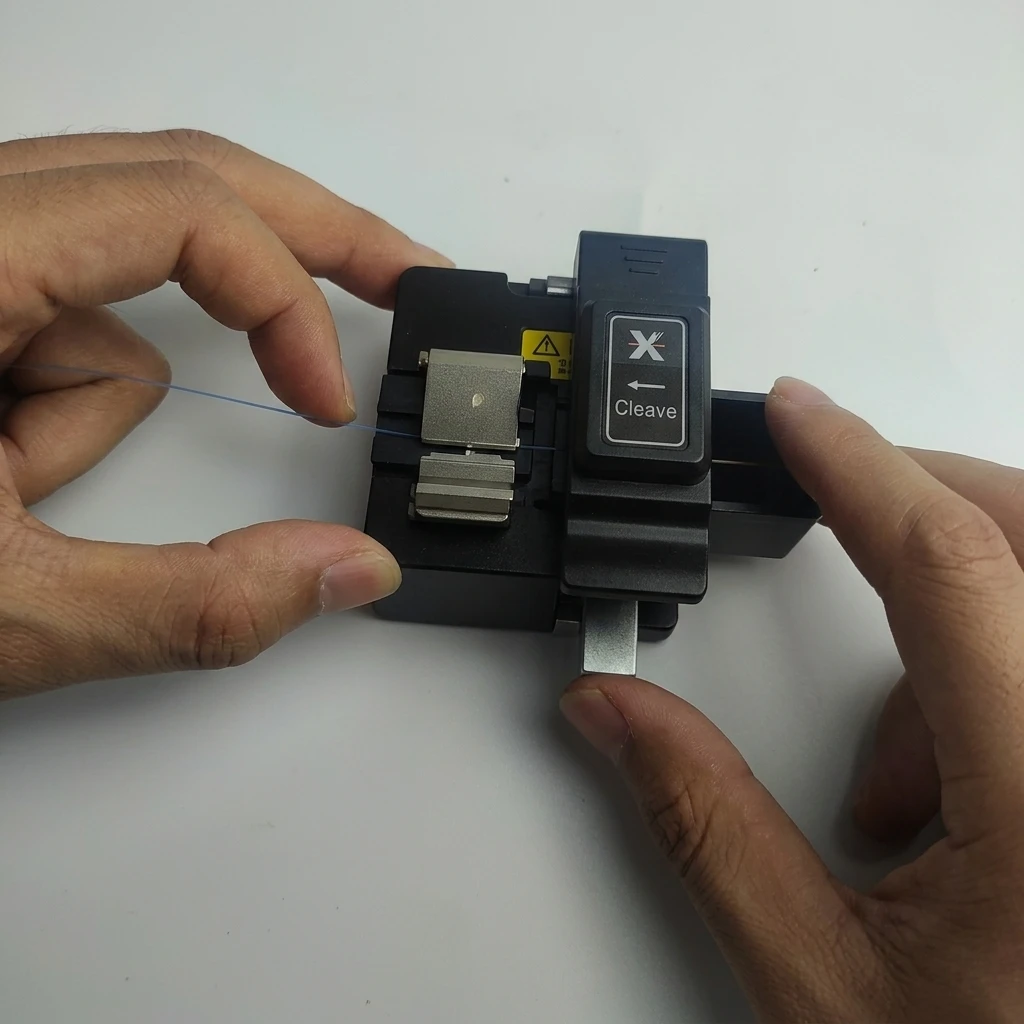

Step 3

3 Cleave fiber

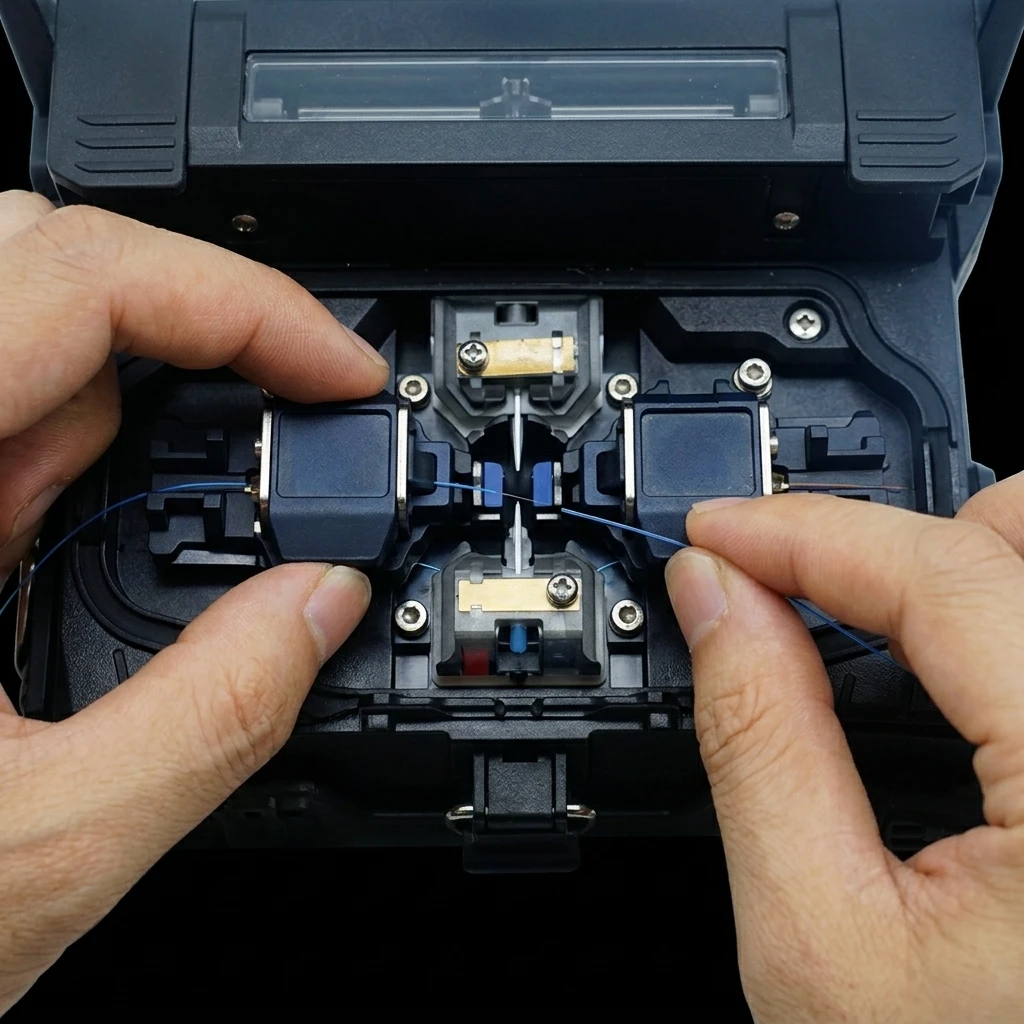

Step 4

4 Fix fiber to machine

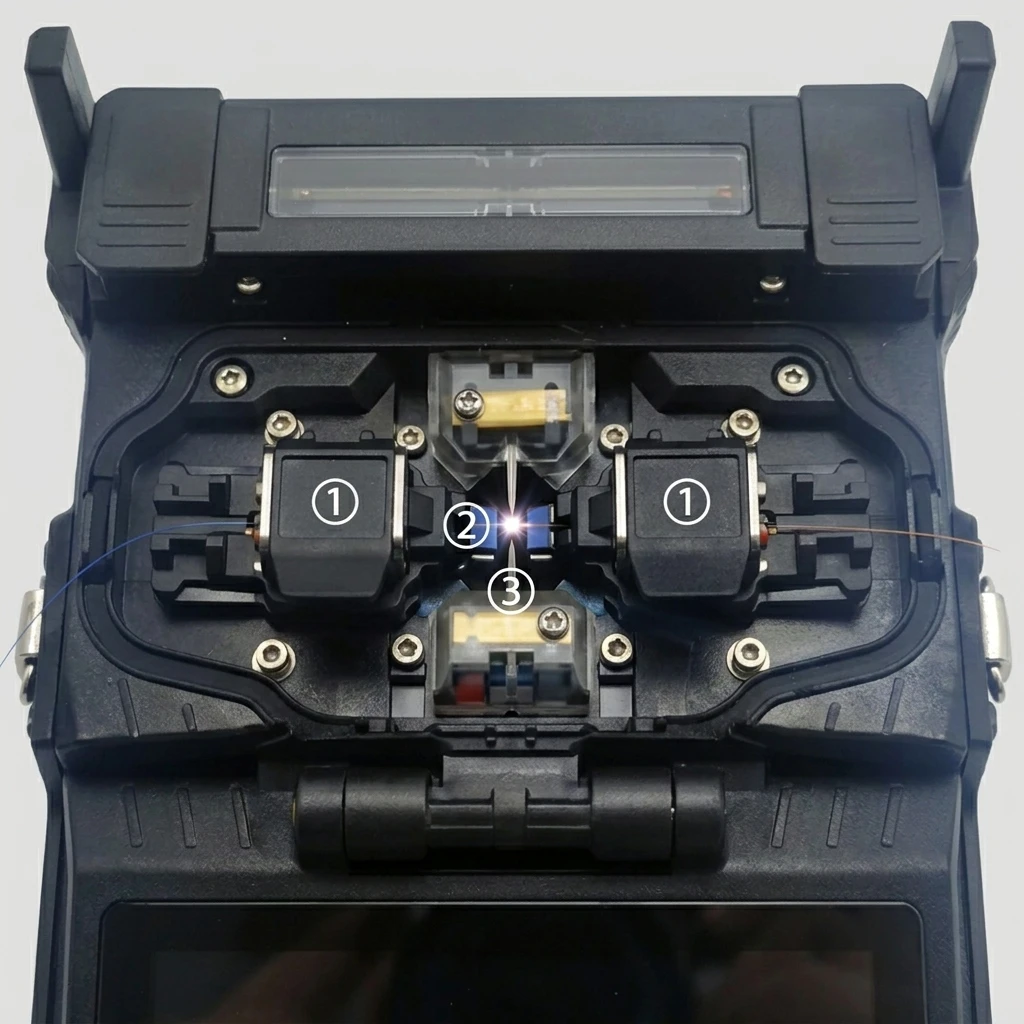

Step 5

5 Close windproof & start

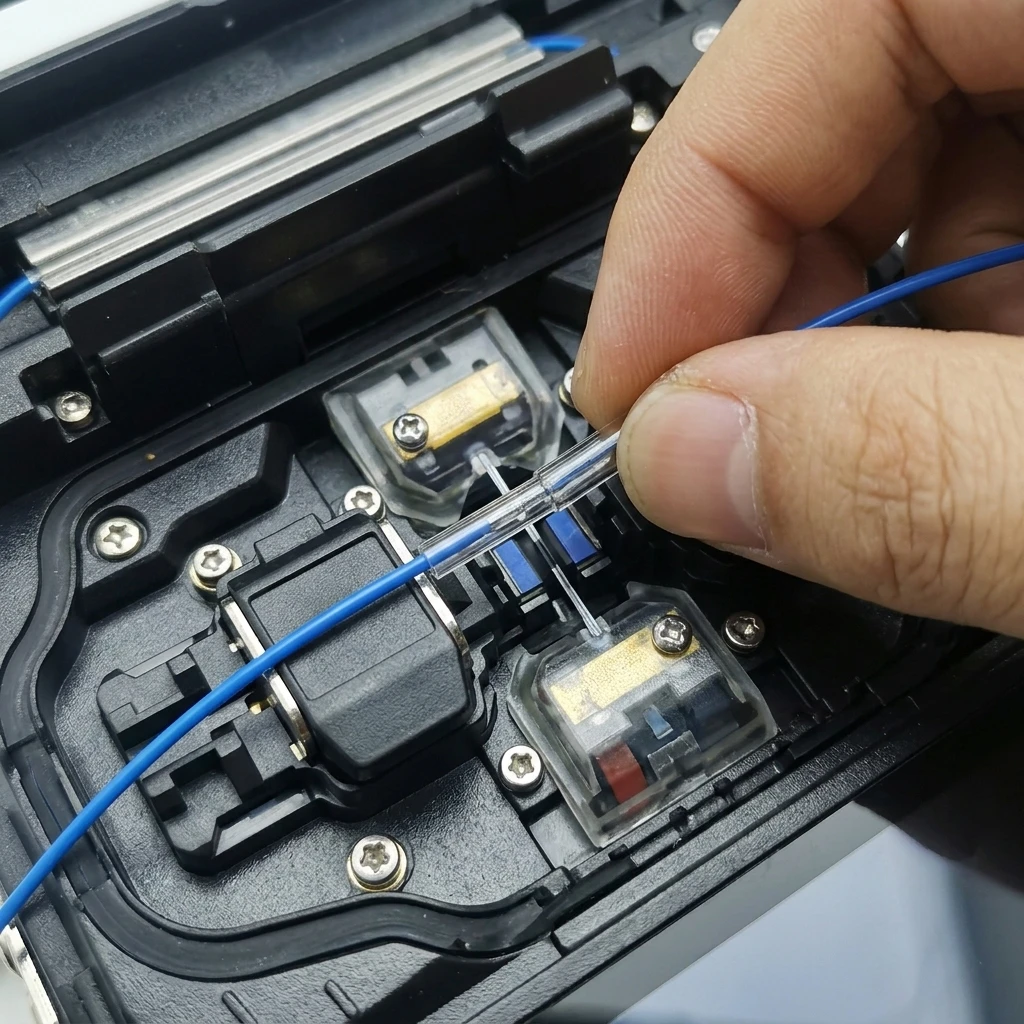

Step 6

6 Move sleeve to heater

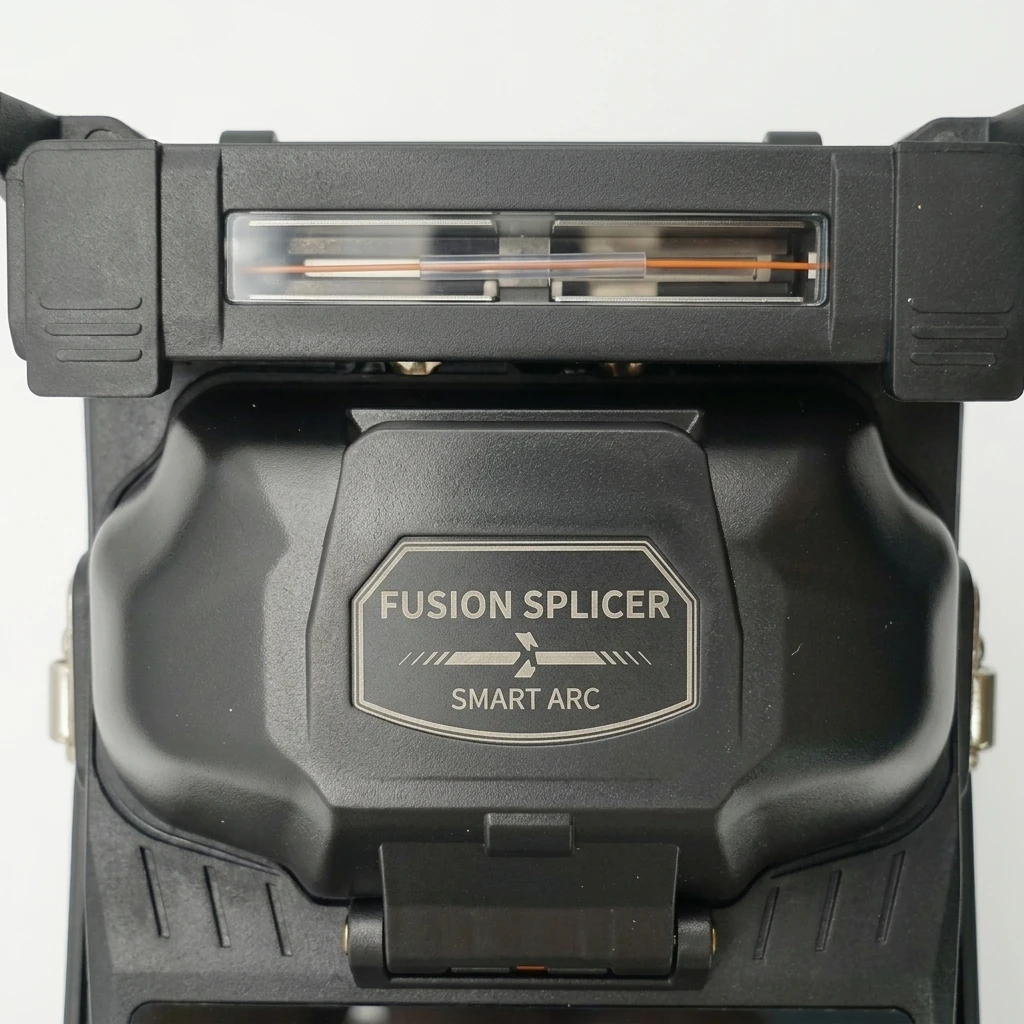

Step 7

7 Start heating

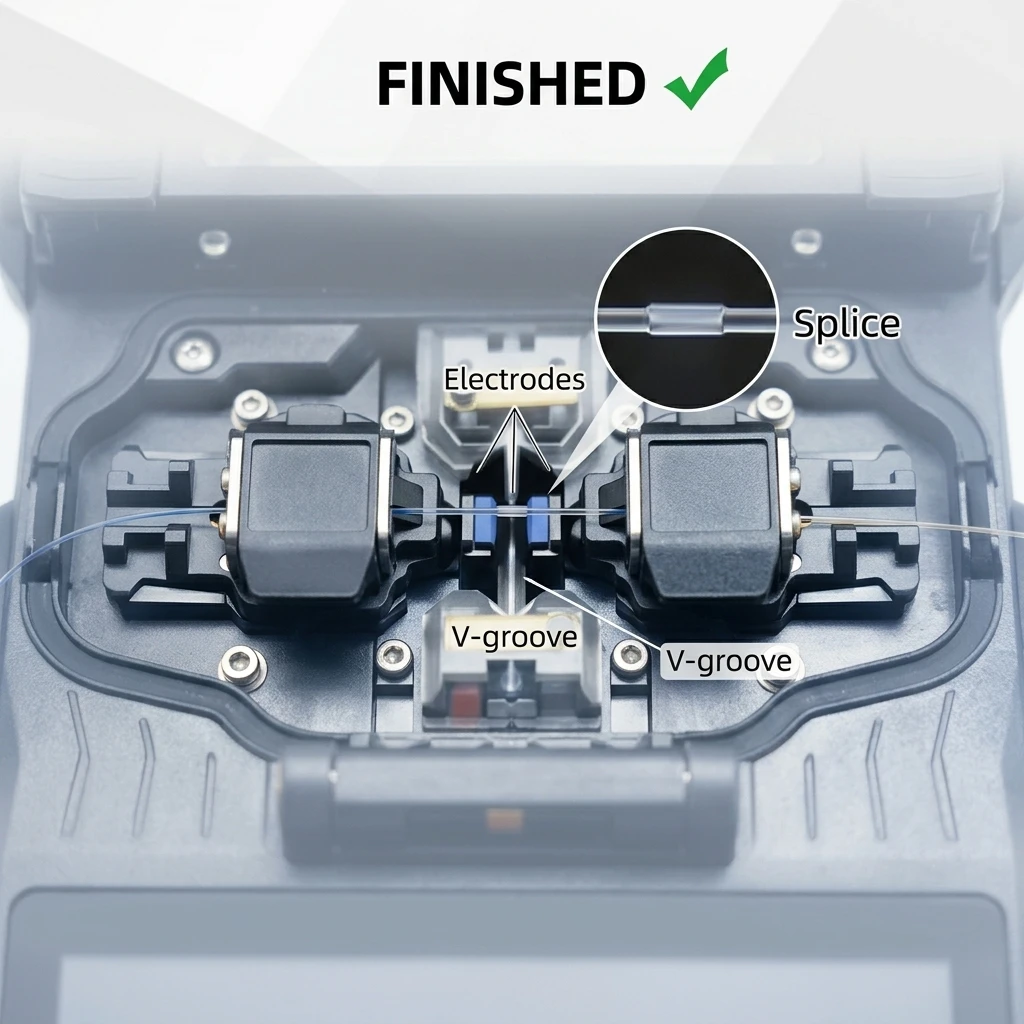

Step 8

8 Finished

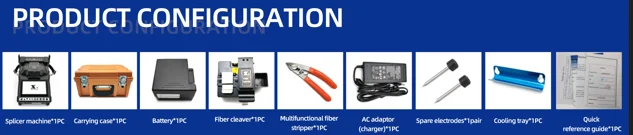

Product Configuration

*Standard package includes X9 fusion splicer, fiber cleaver, stripper, battery, carrying case, and all essential accessories.
